BEEF TROLLEY Mound No. 800/811-xx
$37.42 – $47.46
FEATURES
- Trolley wheels of cast gray iron for high-quality, smooth-running
performance.
- Track groove designed to fit standard 3/8″” or 1/2″” tracking.
- Ample smooth wheel flanges to keep trolleys from climbing track on curves or switches.
- Trolleys available plain or galvanized.
- Hooks are stainless steel.
OPTIONS
To specify options, use the following suffix codes after the trolley catalog number; example: 801A.
| Suffix Code |
Description |
| A |
Galvanized frame, wheel, swivel |
| B |
Wheel has roller bearings and grease fitting |
| C |
Wheel has oilite bushing |
| D |
Wheel with oil hole |
| E |
Wheel with grease fitting for lubrication |
CUSTOM DESIGN YOUR OWN TROLLEYS
You can combine trolleys and hooks to select various arrangements to
meet your specific requirements.
| Trolley cat No. |
Swivel(inches) |
Hook cat No. |
To establish overall length: |
To establish total weight: |
| Hook Length + Trolley length |
Hook weight + Trolley(lbs) weight (oz) |
| 800 |
1/2 |
820SS or 821SS |
See page 13 |
See table below |
See page 13 |
4 1 |
| 801 |
1/2 |
820SS or 821SS |
See page 13 |
See table below |
See page 13 |
4 7 |
| 802 |
1/2 |
820SS or 821SS |
See page 13 |
See table below |
See page 13 |
4 12 |
| 810 |
1/2 |
821SS or 822SS |
See page 13 |
See table below |
See page 13 |
5 15 |
| 811 |
1/2 |
822SS |
See page 13 |
See table below |
See page 13 |
6 5 |
| 811HT |
1/2 |
822SS |
See page 13 |
See table below |
See page 13 |
6 5 |
SPECIFICATIONS
| Catalog No.
Trolley/Hook |
Recommended use |
Frame Size(inches) |
Wheel Size o/a/track diam. |
Hook diam. x Length(inches) |
Pickup opening(inches) |
Top of rail to |
Overall Length(inches) |
Weight
± 2 oz.
(lbs) (oz) |
|
|
Length ± 1/8″ |
Width |
Thickness |
Top of frame(inches) |
Center of swivel(inches) |
| 800/820SS-6 |
Light duty |
10-3/8 |
1-1/4 |
5/16 |
3-7/8 x 2-15/16 |
3/8 x 6-1/4 |
1-5/16 |
4-1/2 |
7-1/2 |
18-1/4 |
4 6 |
| 801/820SS-6 |
Standard duty |
10-3/8 |
1-1/4 |
3/8 |
3-7/8 x 2-15/16 |
3/8 x 6-1/4 |
1-5/16 |
4-1/2 |
7-1/2 |
18-1/4 |
4 12 |
| 801/821SS-6 |
10-3/8 |
1-1/4 |
3/8 |
3-7/8 x 2-15/16 |
1/2 x 6-1/4 |
1-5/16 |
4-1/2 |
7-1/2 |
18-1/4 |
5 – |
| 802/821SS-6 |
Heavy duty |
10-3/8 |
1-1/2 |
3/8 |
3-7/8 x 2-15/16 |
1/2 x 6-1/4 |
1-5/16 |
4-1/2 |
7-1/2 |
18-1/4 |
5 6 |
| 810/822SS-6 |
Havier duty |
11-1/2 |
1-1/2 |
3/8 |
4-3/4 x 3-3/4 |
5/8 x 6-1/4 |
1-1/8 |
5-1/4 |
8 |
19-1/2 |
6 14 |
| 810/822SS-7 |
11-1/2 |
1-1/2 |
3/8 |
4-3/4 x 3-3/4 |
5/8 x 7 |
1-1/8 |
5-1/4 |
8 |
20-1/4 |
7 – |
| 811/822SS-6 |
Extra heavy duty |
11-1/2 |
1-3/4 |
3/8 |
4-3/4 x 3-3/4 |
5/8 x 6-1/4 |
1-1/8 |
5-1/4 |
8 |
19-1/2 |
7 4 |
| 811/822SS-7 |
11-1/2 |
1-3/4 |
3/8 |
4-3/4 x 3-3/4 |
5/8 x 7 |
1-1/8 |
5-1/4 |
8 |
20-1/4 |
7 8 |
| 811HT/822SS-7 |
Heaviest duty* |
11-1/2 |
1-3/4 |
3/8 |
4-3/4 x 3-3/4 |
5/8 x 7 |
1-1/8 |
5-1/4 |
8 |
20-1/4 |
7 8 |
*Specify 811HT when your application requires the strongest trolley frame and use only with 822SS series hooks.
*Recommended for hide puller applications.

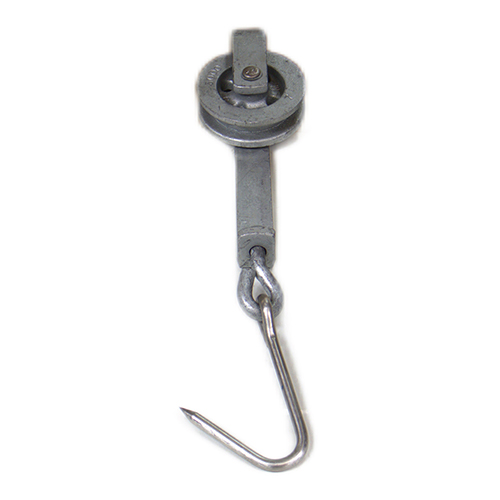

Mound No. 800/820SS-6″
