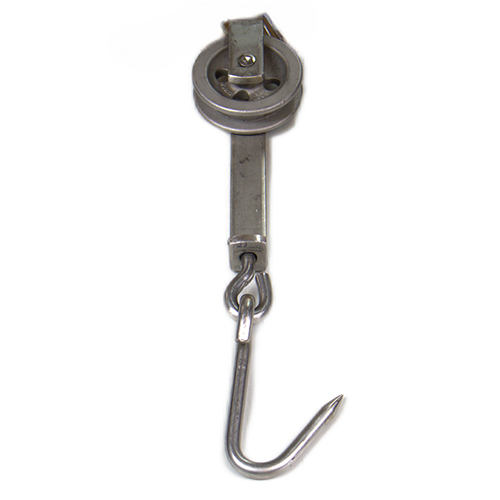

ALL STAINLESS STEEL TROLLEY Mound No. 805SS/819SS-xx

ALL STAINLESS STEEL TROLLEY Mound No. 805SS/819SS-xx

FEATURES

  • Precision investment cast stainless steel wheels.
  • Track groove designed to fit standard 3/8″ or 1/2″ tracking.
  • Ample smooth wheel flanges to keep trolleys from climbing track on curves or switches.
  • Corrosion-resistant, all-stainless steel construction, including frame,
  • axle, swivel and hook.

OPTIONS

To specify options, use the following suffix codes after the trolley catalog number; example: 805SS OB.

Suffix Code Description
OB Wheel has oilite bushing (standard)
RB Wheel has roller bearings with grease fitting for lubrication



Mound No. 805SS/819SS-xx

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Catalog No.

Trolley/Hook

Recommended use

Frame Size(inches)

 Wheel Size o/a/track diam. Hook diam. x Length(inches) Pickup opening(inches) Top of rail to Overall Length(inches) Weight

± 2 oz.

(lbs)        (oz)
Length ± 1/8″ Width Thickness Top of frame(inches) Center of swivel(inches)
805SS/821SS-6 Standard duty 10-3/8 1-1/4 3/8 3-7/8 x 2-15/16 1/2 x 6-1/4 1-1/8 4-1/2 7 17-3/4  5             –
806SS/822SS-6 11-3/8 1-1/2 3/8 3-7/8 x 2-15/16 5/8 x 6-1/4 1-1/8 4-1/2 7 17-3/4 6             –
812SS/822SS-6 Heavy duty 11-1/2 1-3/4 3/8 4-3/4 x 3-11/16 5/8 x 6-1/4 1-1/8 5-1/8 7-1/4 17-3/4 7            –
818SS/822SS-6 Extra Havy duty 12 2 3/8 4-3/4 x 3-11/16 5/8 x 6-1/4 1-1/8 5-1/8 7-1/4 18-5/8  7            8
819SS/822SS-7 13 2 3/8 4-3/4 x 3-11/16 5/8 x 7 1-1/8 5-1/8 8-1/4 20-3/8 8            –



Additional information

Dimensions N/A
Mound No.

805SS/821SS-6, 806SS/822SS-6, 812SS/822SS-6, 818SS/822SS-6, 819SS/822SS-7
Recommended use

Extra Havy duty, Heavy duty, Standard duty
Thickness (inches)

3/8
Wheel Size o/a/track diam. (inches)

3-7/8 x 2-15/16, 4-3/4 x 3-11/16
Hook diam. x Length (inches)

1/2 x 6-1/4, 5/8 x 6-1/4, 5/8 x 7
Pickup opening (inches)

1-1/8
Top of frame (inches)

4-1/2, 5-1/8
Center of swivel (inches)

7, 7-1/4, 8-1/4
Width (inches)

1-1/2, 1-1/4, 1-3/4, 2
Length ± 1/8"

10-3/8, 11-1/2, 11-3/8, 12, 13
Length (inches)

17-3/4, 18-5/8, 20-3/8
